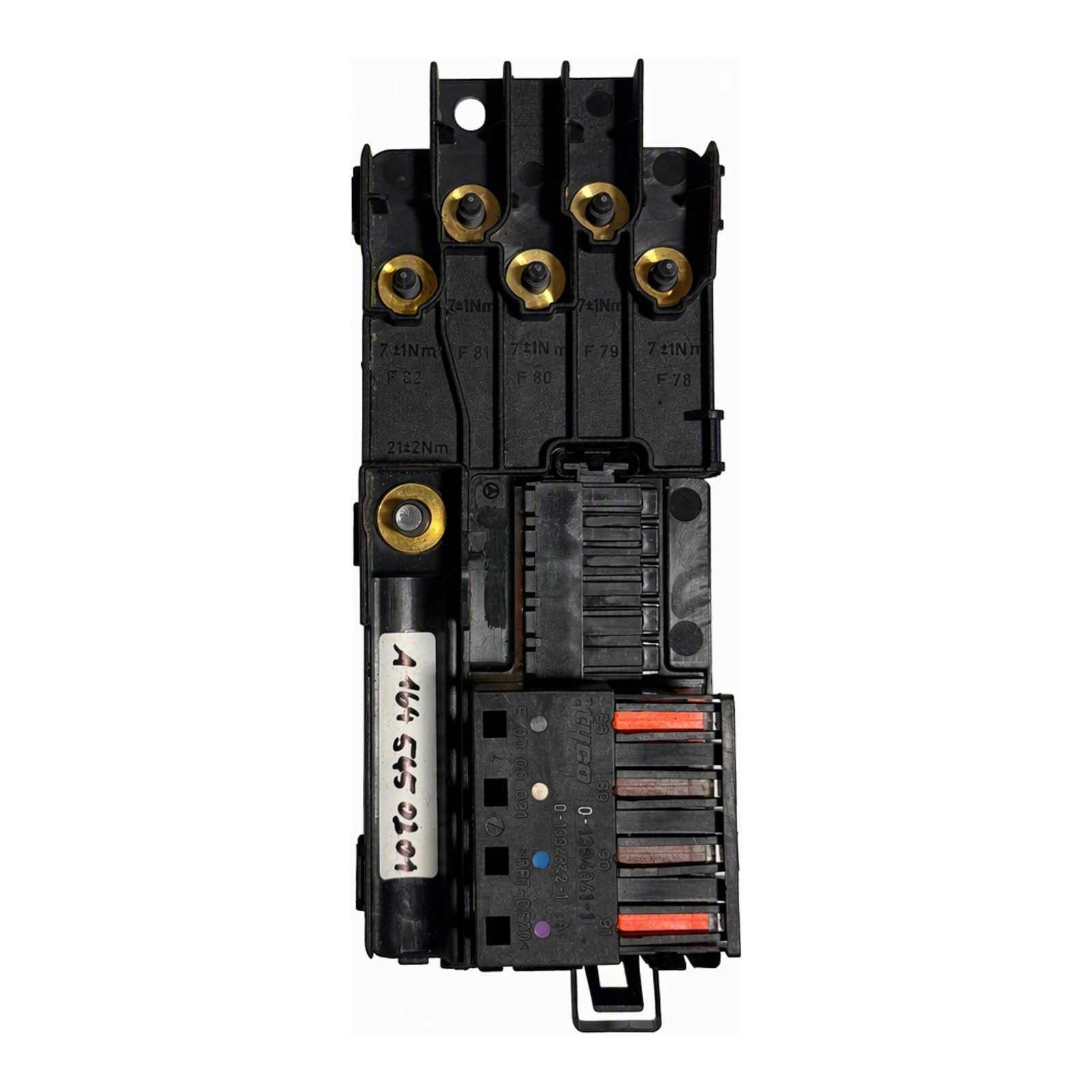

2009 Mercedes-Benz GL-Class Fuse Box Assembly Painted Plastic Metal with Tyco Connectors OEM A 164 545 01 01

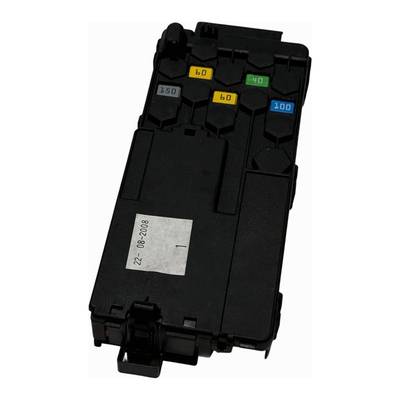

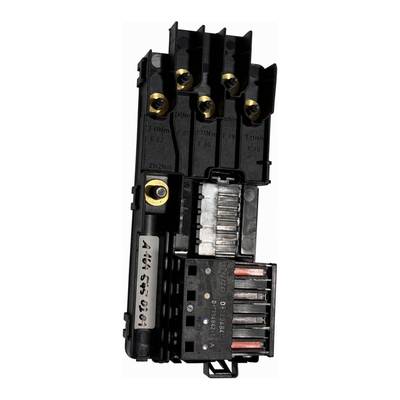

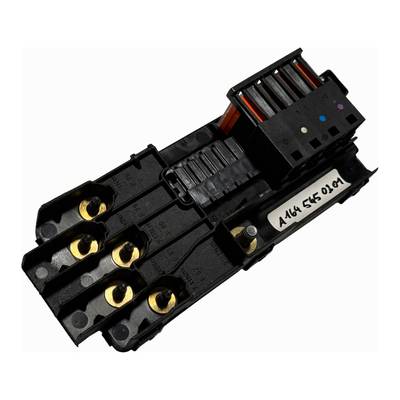

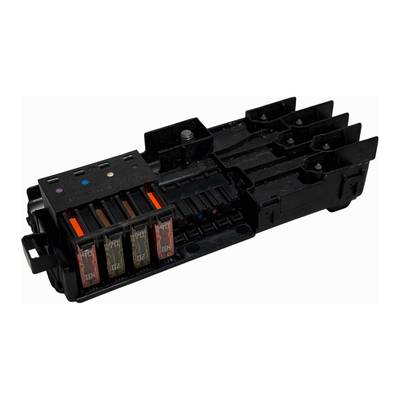

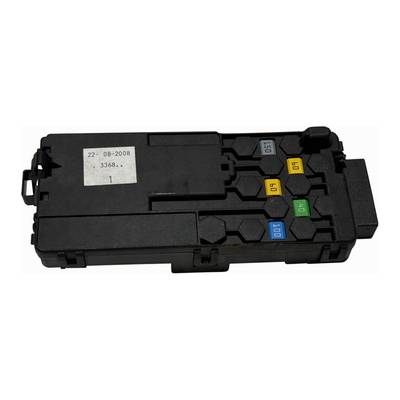

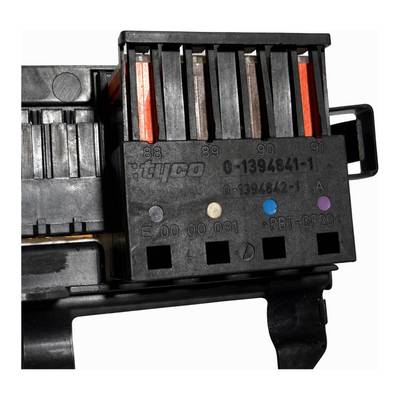

This is a Mercedes-Benz electrical fuse and relay box assembly, OEM part number A 164 545 01 01 / A 164 545 02, designed for the GL-Class (X164) from 2007 to 2012. The housing is Tyco-branded and features five vertical fuse slots, each marked with a colored dot for identification, and fitted with brass washered terminals. Two Tyco multi-pin connectors with orange seals are present, and the front is labeled with numbers 88 to 91 and supplier codes. The assembly includes installed fuses and a mounting clip on the right side. The material is black molded plastic with a matte finish, and all terminal and connector features are intact. The part is in used condition, showing minor dirt and residue typical of automotive electrical components, but no cracks, breaks, or missing elements.

Fitment notes

Researched from the part numbers and the donor car.

Two researchers agreed on 1 of 1 vehicles.

Sources: OEM parts catalogs (mbparts.mbusa.com, realoem.com) and eBay compatibility tables list part numbers A 164 545 01 01 and A 164 545 02 as the electrical fuse and relay box assembly for all Mercedes‑Benz GL‑Class (X164) models built 2007‑2012, regardless of engine or trim. / The supplied vehicle-specific identification supports the 2009 Mercedes-Benz GL350 BlueTEC 4MATIC, while the catalog source identifies the applicable vehicle generation as the X164 facelift (2009–2012); available results did not substantiate additional vehicles for this exact Revision 1 assembly.

Removed from a 2009 Mercedes-Benz GL-Class.

Fits:

• 2009 Mercedes-Benz GL-Class — GL350 BLUETEC 4-MATIC 3.0L V6 AWD (2009)

Interchange part numbers: 00 00 00, 0-1394761-1, 0-1394841-1, 0-1394842-1 A, 2122Nm, A 164 545 01 01, A164 545 01 01, A 416 545 01 01, E 00.00 031, E 00 001 031, PE61-0520

Please match the part number A 164 545 02 to your original before buying.
